Project Information Location: Philippines Project Site: TP Marcelo Company Incorporated Application: Cold Storage and Ice Manufacturing Plant System Type: NH3 Ammonia Gas Detection System Product Used: Gas Control Panel + NH3 Gas Detector Total Quantity: 2 Gas Control Panels + 6 NH3 Gas Detectors Gas Type: NH3 Ammonia Brand: ANWETECH
May 11th,2026 11 Views
Project Overview
ANWETECH supplied an NH3 ammonia gas detection system for TP Marcelo Company Incorporated in the Philippines, a cold storage and ice manufacturing plant where ammonia is commonly used in the refrigeration process.
In cold storage and ice production facilities, NH3 ammonia is an efficient industrial refrigerant, but it also requires strict leakage monitoring. If ammonia gas leaks from refrigeration compressors, valves, pipelines, evaporators, or machine rooms, it may create safety risks for workers, equipment, and daily plant operation.

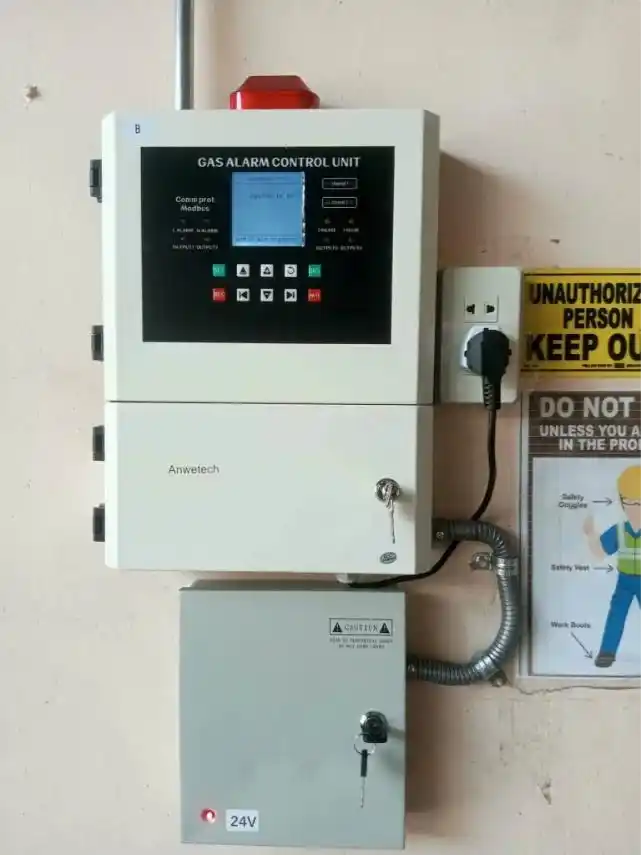

To improve site safety, ANWETECH provided 2 gas control panels and 6 NH3 gas detectors for continuous ammonia gas monitoring. The system is designed to detect ammonia leakage at critical points and provide alarm signals before the gas concentration reaches a dangerous level.
System Deployment

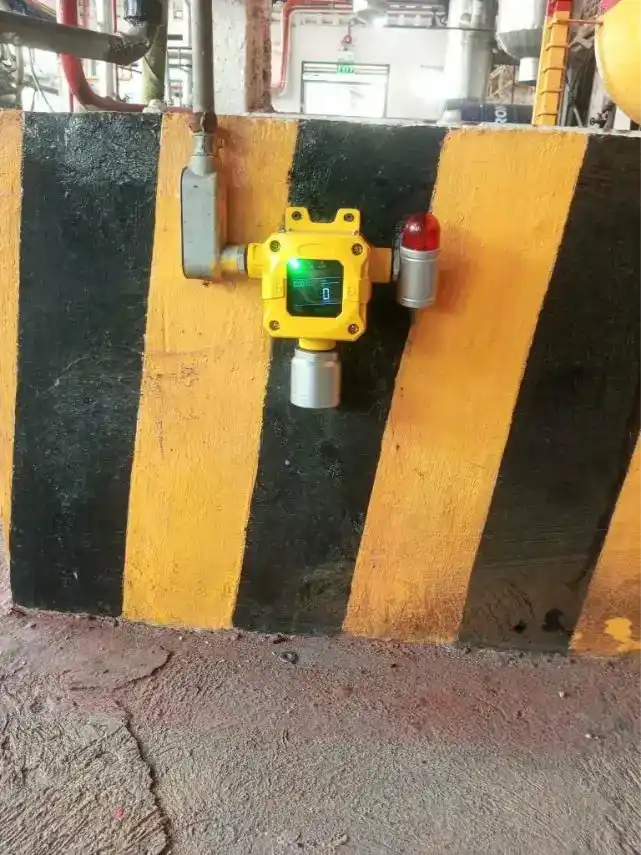

The NH3 gas detectors were installed at key risk areas of the cold storage and ice manufacturing plant, including:
- Refrigeration machine room
- Compressor area
- Ammonia pipeline and valve areas
- Cold storage technical zones
- Ice manufacturing equipment area
- Other potential ammonia leakage points
Each detector continuously monitors the NH3 concentration in the surrounding environment and transmits the signal to the gas control panel. When the ammonia concentration reaches the preset alarm level, the system can provide alarm indication and output signals for emergency response.
This configuration helps the facility build a more reliable gas safety monitoring system for daily refrigeration operation.
Product Features
The ANWETECH NH3 gas detector used in this project is an industrial fixed gas detector suitable for continuous gas leakage monitoring.
Main features include:
- Real-time NH3 gas concentration monitoring
- DC24V power supply
- 4-20mA analog signal output
- RS485 Modbus RTU communication
- Passive relay contact output
- Two-level alarm output
- Die-cast aluminum housing
- Explosion-proof design: Ex d IIC T6
- IP66 ingress protection
- Operating temperature: -40°C to +70°C
- Suitable for industrial and hazardous area applications
The detector can be connected to gas control panels, PLC systems, ventilation systems, sounder beacon alarms, or other safety control equipment according to project requirements.
Engineering Installation Considerations
For NH3 ammonia gas detection, detector location is very important.
Ammonia is lighter than air, so the detector should normally be installed above the possible leakage source or in an upper area where ammonia gas may accumulate. The sensor head should face downward to ensure stable gas sampling and better long-term protection.
During installation, engineers should consider:
- Install close to possible NH3 leakage sources
- Avoid strong vibration
- Avoid direct water spray or heavy condensation
- Keep enough space for maintenance and calibration
- Avoid strong electromagnetic interference
- Ensure correct DC24V power and signal wiring
- Perform regular inspection and calibration
A correct installation position is essential for early ammonia leakage detection.
Project Value
This project helps TP Marcelo Company Incorporated improve ammonia leakage monitoring in its cold storage and ice manufacturing facility.
The ANWETECH NH3 gas detection system provides the customer with:
- Early warning of ammonia gas leakage
- Continuous gas concentration monitoring
- Safer working conditions for operators and maintenance staff
- Alarm signal transmission to the gas control panel
- Flexible linkage with ventilation or alarm devices
- Improved safety management for refrigeration equipment
- Industrial-grade gas detection solution for cold storage applications
